ACX7100 is the first Juniper product powered by Broadcom Jericho2 [BCM88690] and running Junos EVO modular software architecture.

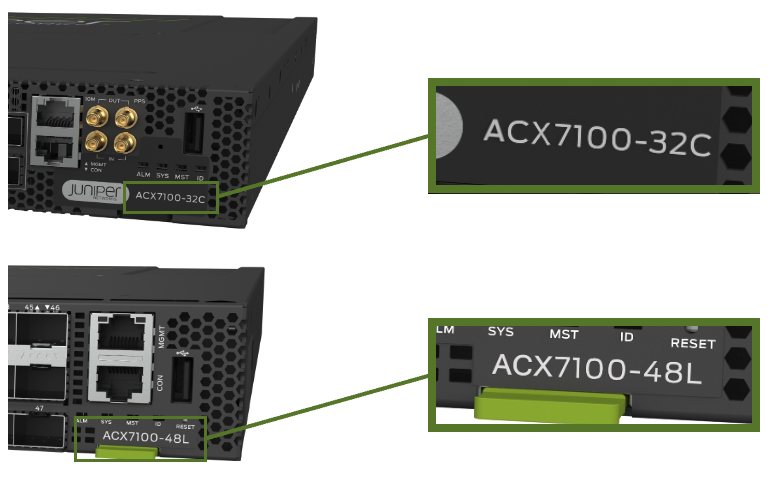

The products exists in two flavors:

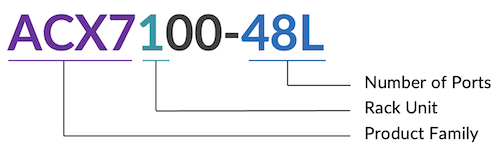

ACX7100-48L: 48 ports 10/25/50GE and 6 ports 100/200/400GE

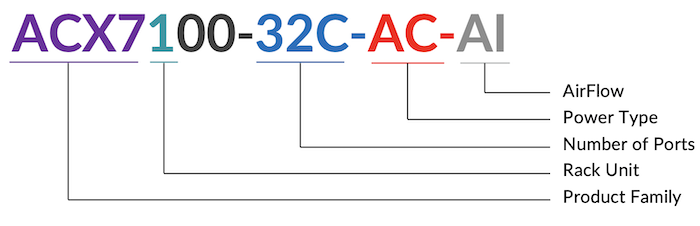

ACX7100-32C: 32 ports 40/100GE and 4 ports 100/200/400GE

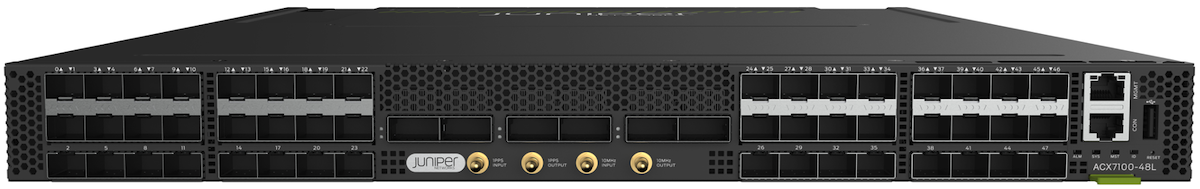

Figure 1: ACX7100-48 Front View

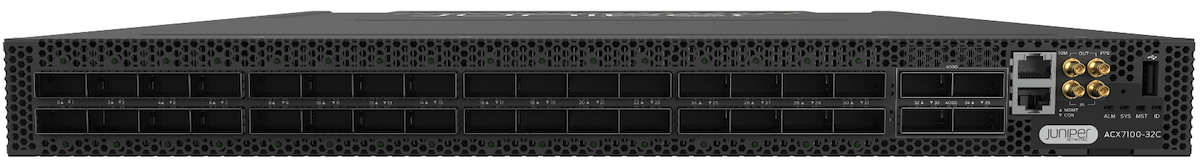

Figure 2: ACX7100-32C Front View
Both devices are 1RU Ethernet-only routers with 4.8 Tbps forwarding capacity and Class-C Timing. MACsec is supported on all the ports of the ACX7100-32C only.
They are primarily targeted at the aggregation market but can be used in multiple roles once features and scales meet the requirements.
Maximum number of ports supported on ACX7100 Routers:
Port Speed
ACX7100-32CTotal Supported Ports
ACX7100-32CDetails
ACX7100-48LTotal Supported Ports
ACX7100-48LDetails
400GE
4
4x 1
6
6x 1
100GE
48
32x 1 + 4x (4x1)
24
6x (4x1)
50GE
96
32x (2x1) + 4x (8x1)
95
47 + 6x (8x1)
40GE
36
32x 1 + 4x 1
6
6x 1
25GE
80
16x (4x1) + 4x (4x1)
72
48 + 6x (4x1)
10GE
80
16x (4x1) + 4x (4x1)
72
48 + 6x (4x1)
1GE
0*
0*
0*
0*
At the moment of this publication, solutions are under investigation to offer 1GE connectivity.
regress@rtme-acx-48L> show chassis hardware
Hardware inventory:
Item Version Part number Serial number Description
Chassis YW02210xxxxx JNP7100-48L [ACX7100-48L]
PSM 0 REV 04 740-085431 1ED7A1xxxxx PSU 1600W AC, Front to Back Airflow
PSM 1 REV 04 740-085431 1ED7A1xxxxx PSU 1600W AC, Front to Back Airflow
Routing Engine 0 REV 08 611-112446 YY02210xxxxx RE-JNP-7100
CB 0 REV 10 650-113149 YW02210xxxxx Control Board
FPC 0 BUILTIN BUILTIN ACX7100-48L
PIC 0 BUILTIN BUILTIN MRATE- 48xSFP56 + 6xQSFP56-DD
Xcvr 0 REV 01 740-021308 97D625Axxxxx SFP+-10G-SR
Xcvr 1 REV 01 740-021308 AJQxxxx SFP+-10G-SR
Xcvr 3 0 NON-JNPR ONT154xxxxx SFP+-10G-LR
Xcvr 4 REV 01 740-031981 AP4xxxx SFP+-10G-LR
Xcvr 6 REV 01 740-031981 45T0124xxxxx SFP+-10G-LR
Xcvr 7 REV 01 740-031981 38T0124xxxxx SFP+-10G-LR
Xcvr 42 REV 01 740-031981 45T0124xxxxx SFP+-10G-LR
Xcvr 43 0 NON-JNPR ONT154xxxxx SFP+-10G-LR
Xcvr 45 REV 01 740-021308 ALDxxxx SFP+-10G-SR
Xcvr 48 REV 01 740-058734 1F1CQ1Axxxxxx QSFP-100GBASE-SR4
Xcvr 50 XXXX NON-JNPR L2128xxxxx QSFP56-DD-400G-ZR
Xcvr 51 XXXX NON-JNPR L2131xxxxx QSFP56-DD-400G-ZR
Fan Tray 0 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 1 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 2 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 3 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 4 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 5 JNP7100 Fan Tray, Front to Back Airflow - AFO
regress@rtme-acx-48L>
regress@rtme-acx7100-32C> show chassis hardware
Hardware inventory:
Item Version Part number Serial number Description
Chassis YX02211xxxxx JNP7100-32C [ACX7100-32C]
PSM 0 REV 04 740-085431 1ED7A1xxxxx PSU 1600W AC, Front to Back Airflow
PSM 1 REV 04 740-085431 1ED7A1xxxxx PSU 1600W AC, Front to Back Airflow
Routing Engine 0 REV 09 611-112446 YY02211xxxxx RE-JNP-7100
CB 0 REV 13 650-113148 YX02211xxxxx Control Board
FPC 0 BUILTIN BUILTIN ACX7100-32C
PIC 0 BUILTIN BUILTIN MRATE- 32xQSFP-DD + 4xQSFP56-DD
Xcvr 0 REV 01 740-058734 1A3CQ1A5xxxxx QSFP-100GBASE-SR4
Xcvr 1 REV 01 740-058734 1F1CQ1A6xxxxx QSFP-100GBASE-SR4
Xcvr 2 REV 01 740-058734 1F1CQ1A6xxxxx QSFP-100GBASE-SR4
Xcvr 3 REV 01 740-058734 1F1CQ1A6xxxxx QSFP-100GBASE-SR4
Xcvr 4 REV 01 740-058734 1F1CQ1A6xxxxx QSFP-100GBASE-SR4
Xcvr 5 REV 01 740-058734 1F1CQ1A6xxxxx QSFP-100GBASE-SR4
Fan Tray 0 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 1 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 2 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 3 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 4 JNP7100 Fan Tray, Front to Back Airflow - AFO
Fan Tray 5 JNP7100 Fan Tray, Front to Back Airflow - AFO
regress@rtme-acx7100-32C>
regress@rtme-acx7100-32> show version
Hostname: rtme-acx7100-32C
Model: ACX7100-32C
Junos: 22.2R1.12-EVO
Yocto: 3.0.2
Linux Kernel: 5.2.60-yocto-standard-g34a7a87
JUNOS-EVO OS 64-bit [junos-evo-install-acx-f-x86-64-22.2R1.12-EVO]
regress@rtme-acx7100-32C>
regress@rtme-acx-48L> show version
Hostname: rtme-acx-48L
Model: ACX7100-48L
Junos: 22.2R1.12-EVO
Yocto: 3.0.2
Linux Kernel: 5.2.60-yocto-standard-g34a7a87
JUNOS-EVO OS 64-bit junos-evo-install-acx-f-x86-64-22.2R1.12-EVO]
regress@rtme-acx-48L>
Both ACX7100-32C and ACX7100-48L are using the same "acx-f" images (f for fixed). "acx-m" is used for modular systems.
In ACX7k Series, all physical interfaces are named "et-*" regardless of the optics/speed. It simplifies significantly the port migration tasks. In this example below, you can verify that port 10GE, 100GE or 400GE are all "et-x/y/z":
Port 54 is internal-only and used to connect to the PTP (Precision Time Protocol) FPGA via a mux. You'll also note that ACX7100-48L doesn't support 1GE ports at FRS (launch date). A solution to provide 1GE capability is under consideration, but it's not a mode natively supported by Jericho2.

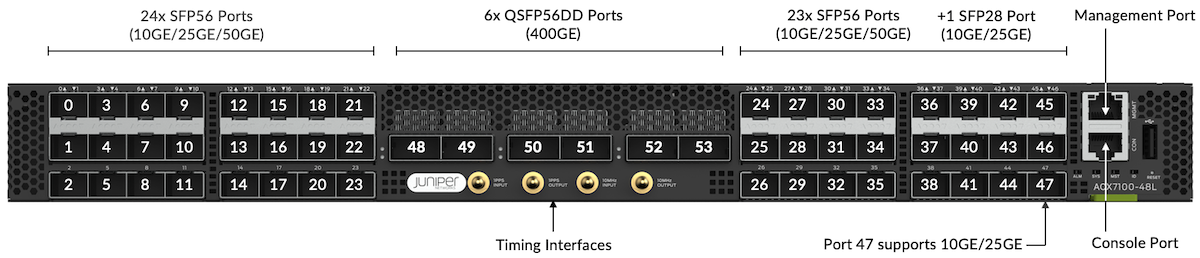

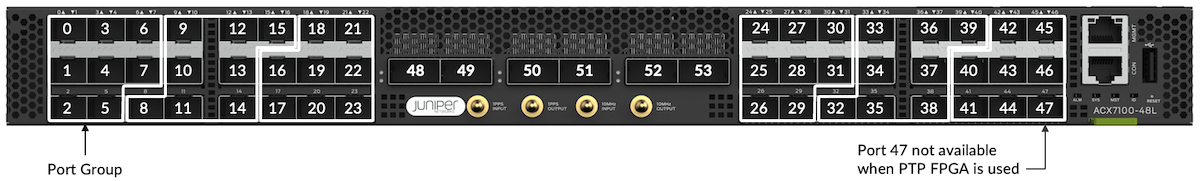

Figure 9: ACX7100-48L Port Groups and Their Interfaces*
To understand the configuration capabilities, we need to introduce the concept of "Port Group" (PG). As the name implies, a PG gathers several adjacent ports.

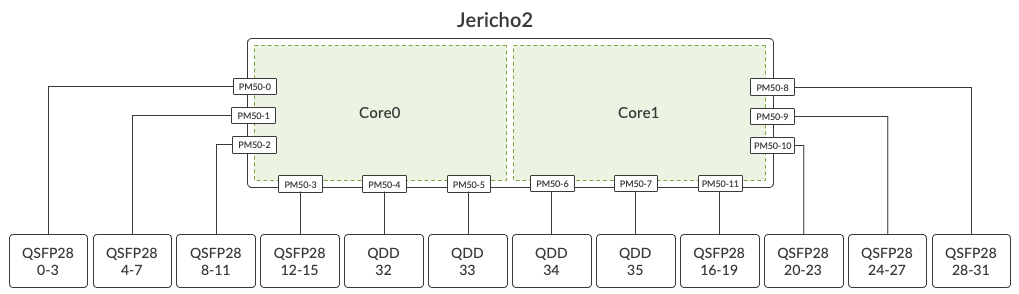

Internally, the ports of a given PG are mapped to the same Port Macro (PM). A PM is block of SerDes (Serializer/Deserializer) connecting the PFE to other elements inside the router, including Network Interfaces and Fabric Ports. For more details on this concept, we invite you to read the "Port Macros" section of this article: https://juniper.github.io/techposts/building-the-acx7000-series-the-pfe/article
We can abstract it to this diagram:

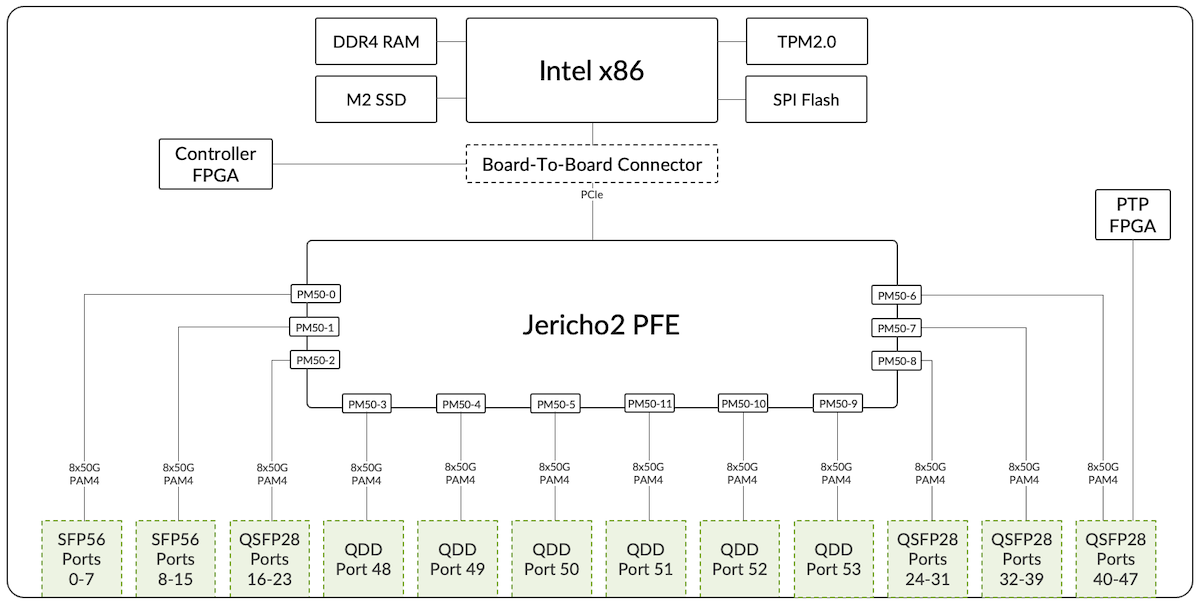

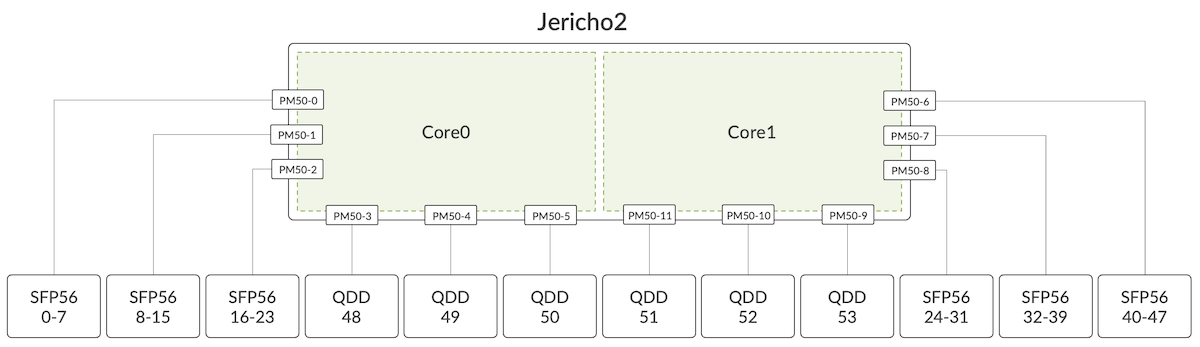

Figure 10: Mapping of ports to Port Macro and J2 Cores
For the SFP ports, from 0 to 47, 8 ports constitute a group.
PG 0
Ports 0 - 7
PG 1
Ports 8 - 15
PG 2
Ports 16 - 23
PG 3
Ports 24 - 31
PG 4
Ports 32 - 39
PG 5
Ports 40 - 47
Depending on their electrical specifications, optic modules require appropriate clock sources. A given Port Group can only be configured with two clock speeds. It impacts the combination of port types we support within this PG. For example, it will accept 10 Gbps + 25 Gbps, or 10 Gbps + 50 Gbps, or 25 Gbps + 50 Gbps, but it won't be possible to add a third clock speed in the mix.
The QSFP ports from 48 to 53 are individually considered as a Port Group, there are no specific limitations for them.

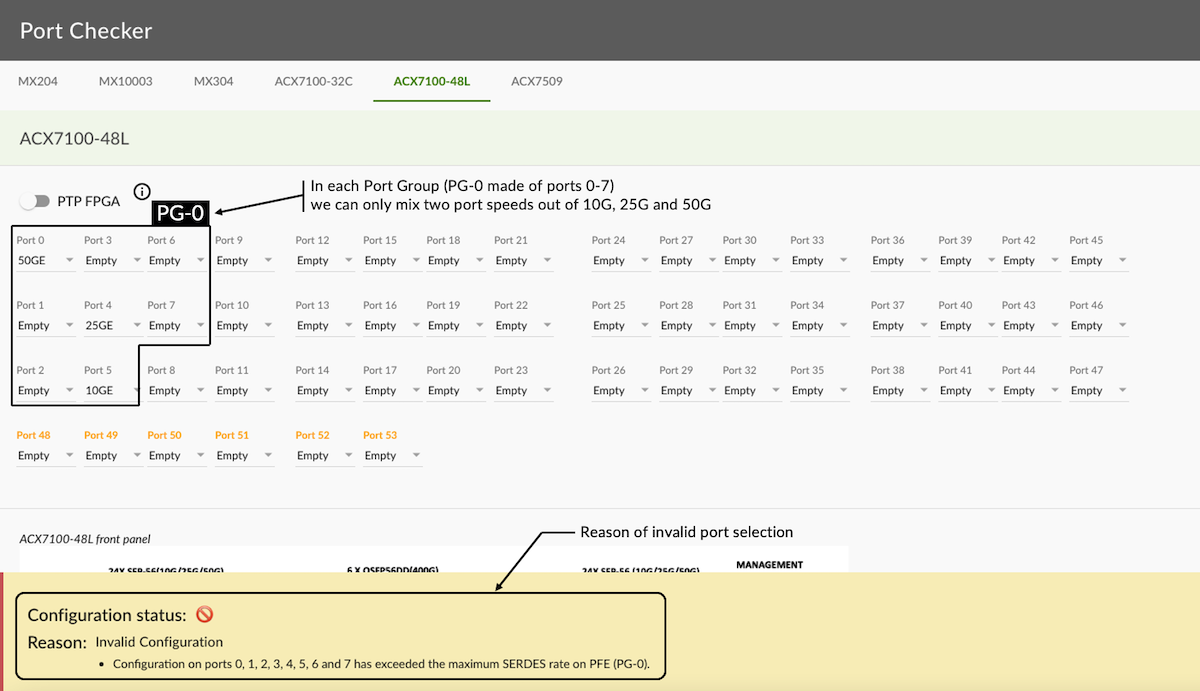

ACX7100-48L: Port Configuration and Port Checker Tool¶
These limitations in port usage and port combination are the following:

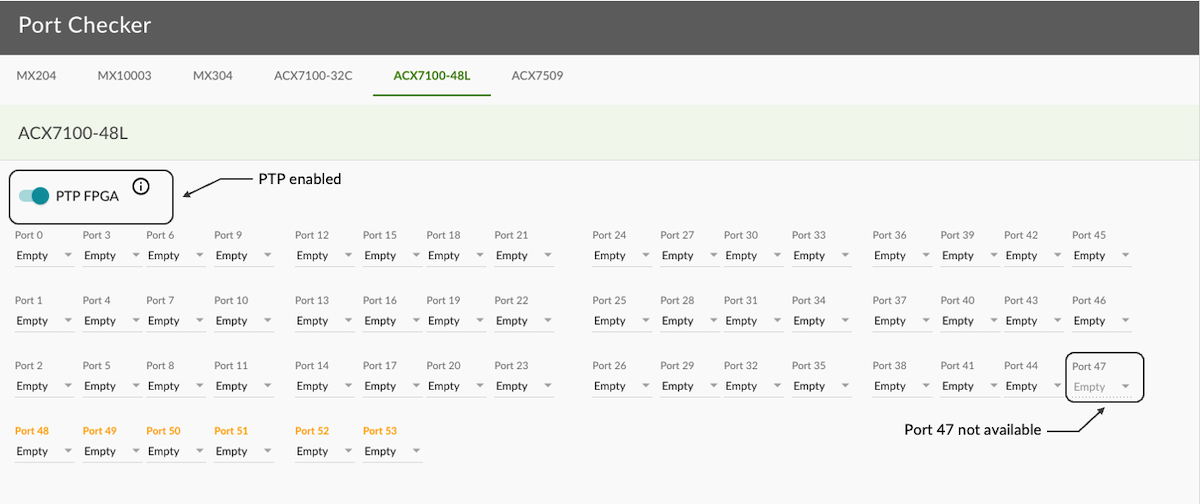

Once PTP is enabled, Port 47 is not usable
This port 47 can be used with 10GE or 25GE, but not 50GE optics, that's why you'll find in the public documentation that router forwarding capability is 4.775 Tbps (and not 4.8T). Once the PTP FPGA is enabled, the port is disabled. Indeed, we use an internal mux to connect to the PTP chipset.
To activate the PTP FPGA, use the following CLI configuration:
[edit]
root@rtme-acx7100# run show interfaces terse et-0/0/6*
Interface Admin Link Proto Local Remote
et-0/0/6 up down
et-0/0/6.16386 up down multiservice
[edit]
root@rtme-acx7100# run show interfaces terse et-0/0/7*
Interface Admin Link Proto Local Remote
et-0/0/7 up down
et-0/0/7.16386 up down multiservice
[edit]
root@rtme-acx7100# show interfaces et-0/0/6
[edit]
root@rtme-acx7100# show interfaces et-0/0/7
[edit]
root@rtme-acx7100# set interfaces et-0/0/6 number-of-sub-ports 4 speed 10g
[edit]
root@rtme-acx7100# show interfaces et-0/0/6
number-of-sub-ports 4;
speed 10g;
[edit]
root@rtme-acx7100# commit
commit complete
[edit]
root@rtme-acx7100# run show interfaces terse et-0/0/6*
Interface Admin Link Proto Local Remote
et-0/0/6 up down
et-0/0/6.16386 up down multiservice
[edit]
root@rtme-acx7100# run show interfaces terse et-0/0/7*
Interface Admin Link Proto Local Remote
et-0/0/7 up down
et-0/0/7.16386 up down multiservice
[edit]
root@rtme-acx7100# set interfaces et-0/0/7 unused
[edit]
root@rtme-acx7100# commit
commit complete
[edit]
root@rtme-acx7100# run show interfaces terse et-0/0/6*
Interface Admin Link Proto Local Remote
et-0/0/6:0 up down
et-0/0/6:1 up down
et-0/0/6:2 up down
et-0/0/6:3 up down
[edit]
root@rtme-acx7100# run show interfaces terse et-0/0/7*
error: device et-0/0/7* not found
[edit]
root@rtme-acx7100#
Only two SerDes speeds can be configured in a given Port Group
Keep in mind that port speed and SerDes rates are different, the second category is Broadcom internal rates: 10.3125Gbps, 20.725Gbps, 25.7825Gbps, 53.125Gbps...

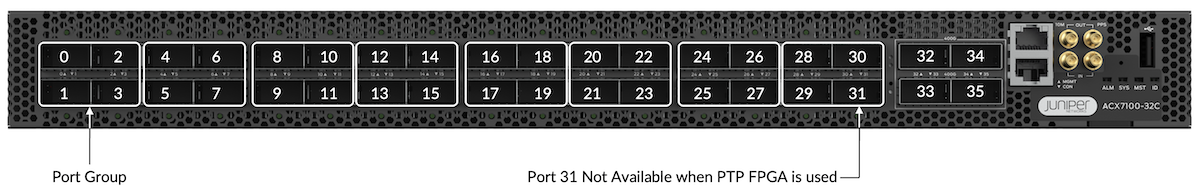

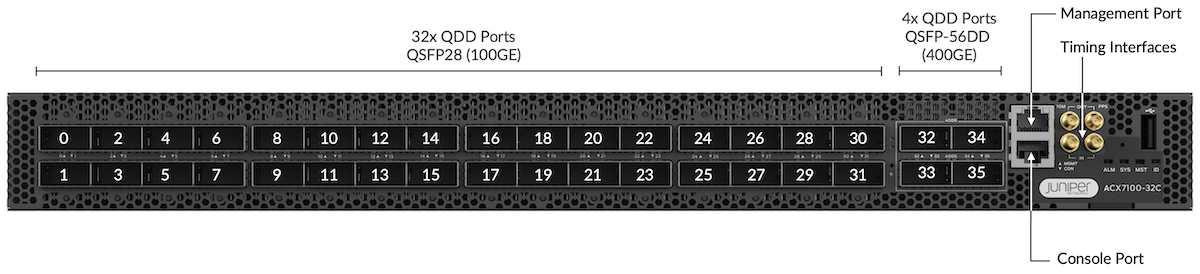

The first 32 ports are QSFP-DD cages mounted in a belly-to-belly fashion. With this design, they support high-power QSFP28 modules. A follow-up article will be published soon, demonstrating the use of ZR ports on all ports.
We also have various breakout options available like 4x10GE, 4x25GE, 2x50GE, 8x50GE along with native 10GE, 25GE, 50GE, 100GE and 400GE support.
Check the various port capabilities with the CLI command "show chassis pic fpc-slot 0 pic-slot 0".
Note: port 36 is internal-only and used to connect to the PTP FPGA.
You can get similar info from the CLI-PFE by using the "show picd config" command (note that cli-pfe commands are not official supported and can change in their form or output without any notification).
These limitations in port usage and port combination are the following:
Once PTP is enabled, Port 31 is not available (the same reason as port 47 on ACX7100-48L described in the previous section).

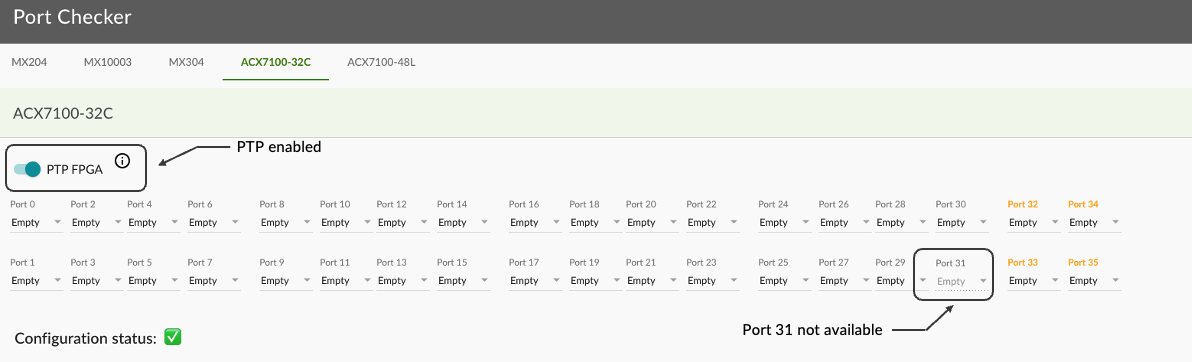

Figure 16: Port Checker 1
Only even ports can be channelized (configured with breakout). For odd ports, we don't allow the configuration of 4x10GE and 4x25GE as shown below.
Once an even port (N) is configured as channelized, the N+1 port must be configured as unused. This restriction is coming from the maximum number of internal MAC addresses we can use (logically, a break-out port consumes 4 MAC addresses).
Note: The ACX7100-48L supports 2x50GE on both odd and even ports, the limitation only applies to 4x10GE and 4x25GE.

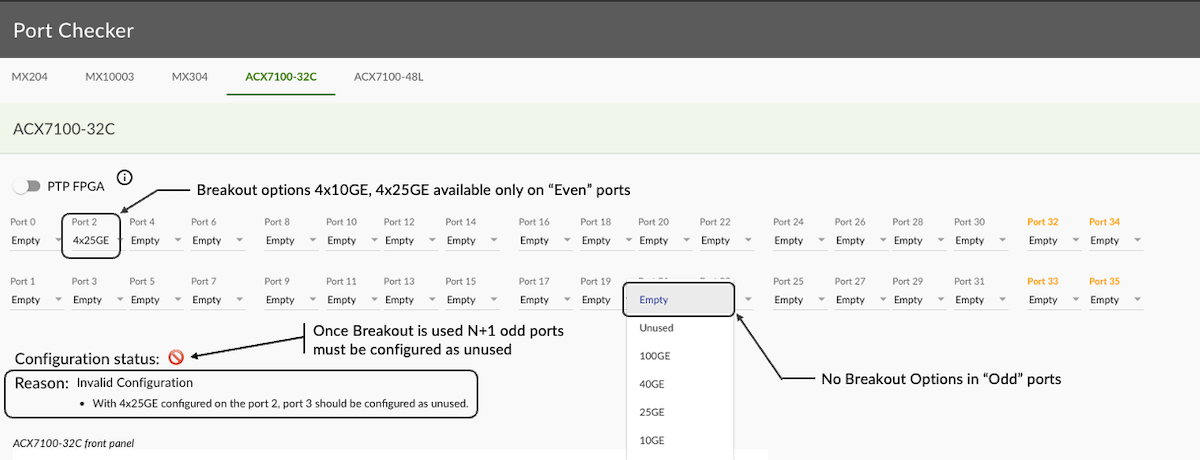

Figure 17: Port Checker 2
QSFP-DD Ports 0 to 31
J2 SerDes (Gbps)
Converted by GearBoxinto Line SerDes (Gbps)
100GE
2x 53.125
4x 25.7825
4x 25GE BreakOut
4x 25.7825
4x 25.7825
40GE
2x 20.725
4x 10.3125
4x 10GE BreakOut
4x 10.3125
4x 10.3125
QSFP56-DDPorts 32 to 35
J2 SerDes (Gbps)
400GE
8x 53.125
4x 100GE BreakOut
8x 53.125
2x 100GE BreakOut
8x 25.7825
100GE (SR4/LR4/ER4/...)
4x 25.7825

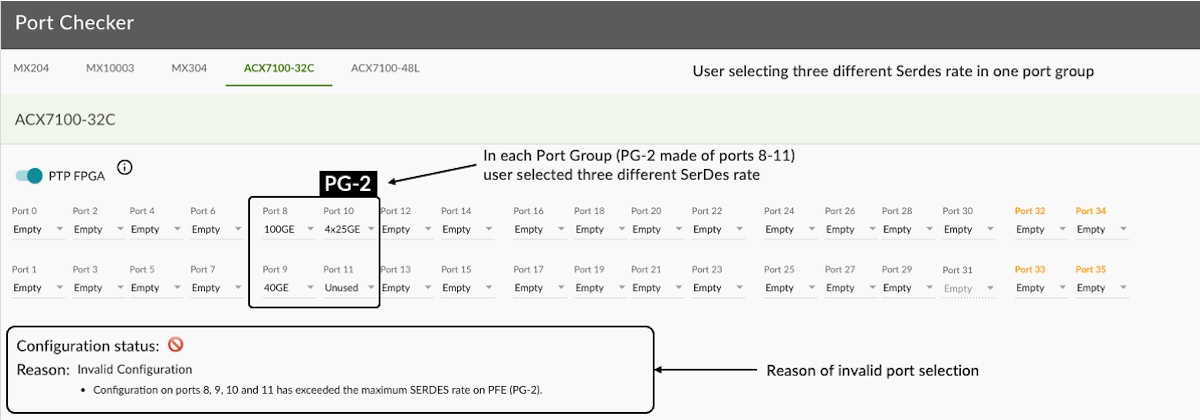

Figure 18: Port Checker 3
Note it's possible to use QSFP-to-SFP-Adaptors (QSA) in the 100GE slots. This use case could make sense if you need a small quantity of 10GE (particularly in long distances cases requiring ER reach, something not available with breakout options).
The ACX7100-32C is internally composed of multiple parts. We can summarize them as:
A Broadcom Jericho2 PFE (BCM88690) with 8GB of HBM
Multiple Gearboxes (GBs) to adapt 50 Gbps PAM4 into 25Gbps NRZ
Multiple 400 Gbps PHY modules
Intel x86 CPU (6 cores) with DDR4 memory and SSD storage
Internal controllers for I2C (inter-integrated circuit), fan control, ...
PTP FPGA
TPM 2.0 module (Trusted Platform Module)

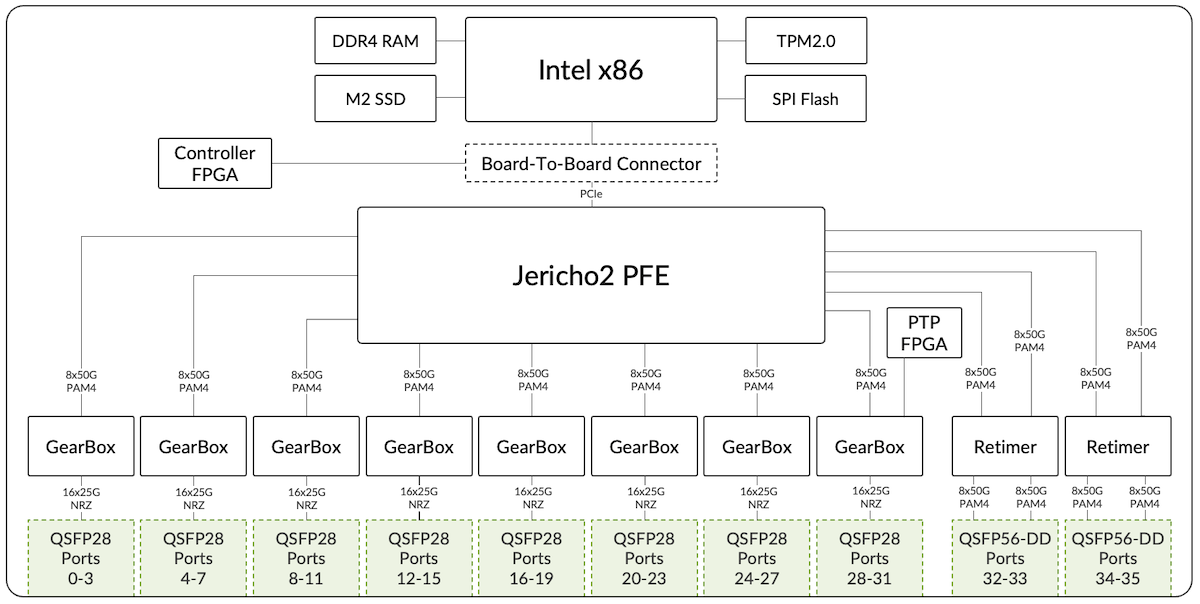

Figure 19: ACX7100-32C Block Diagram
In this diagram, we are presenting the SerDes at 50 Gbps (instead of 53.125 Gbps) and 25 Gbps (instead of 25.7875 Gbps) for sake of simplicity.
It is worth mentioning also that "NRZ" and "PAM4" mentioned below "GearBoxes" and "Retimers" in this diagram are dependent on the type of the optic modules inserted. Also, you could legitimately ask why we are using GB for the ports 32 to 35 since they could be directly connected to the Port Macros / PFE. This part is actually required for MACsec encryption, a technology not natively available in Jericho2 ASIC.
The different components can be monitored via CLI.
regress@rtme-acx7100-32C:pfe> show gearbox list fpc 0 pic 0
INDEX NAME MDIO INIT
----------------------------------------
0 88X7121M_B0 0x0000 SUCCESS
1 88X7121M_B0 0x0008 SUCCESS
2 88X7121M_B0 0x0020 SUCCESS
3 88X7121M_B0 0x0028 SUCCESS
4 88X7121M_B0 0x0040 SUCCESS
5 88X7121M_B0 0x0048 SUCCESS
6 88X7121M_B0 0x0060 SUCCESS
7 88X7121M_B0 0x0068 SUCCESS
8 88X7121M_B0 0x0100 SUCCESS
9 88X7121M_B0 0x0108 SUCCESS
----------------------------------------
API Version: 2.3.0
Serdes FW Rev: 0.10.11.89
Chip FW Rev: 0.2.16.1
regress@rtme-acx7100-32C:pfe> show gearbox port-status fpc 0 pic 0
PORT LINK(L:H) SPEED MODE(L:H) LANE_MAP(L:H) SD(L:H) LOCK(L:H) MDIO AN(L)
------------------------------------------------------------------------------------------
0:0 --:UP 100G 62:69 0x000f:0x0003 0:1 0:1 0x0000(0) OFF
1:0 --:UP 100G 63:69 0x00f0:0x0030 0:1 0:1 0x0001(0) OFF
2:0 --:UP 100G 63:69 0x0f00:0x0300 0:1 0:1 0x0002(0) OFF
3:0 --:UP 100G 63:69 0xf000:0x3000 0:1 0:1 0x0003(0) OFF
4:0 --:UP 100G 63:69 0x000f:0x0003 0:1 0:1 0x0008(1) OFF
5:0 --:UP 100G 63:69 0x00f0:0x0030 0:1 0:1 0x0009(1) OFF
6:0 --:UP 100G 63:69 0x0f00:0x0300 0:1 0:1 0x000a(1) OFF
7:0 --:UP 100G 63:69 0xf000:0x3000 0:1 0:1 0x000b(1) OFF
8:0 --:UP 100G 63:69 0x000f:0x0003 0:1 0:1 0x0020(2) OFF
9:0 --:UP 100G 63:69 0x00f0:0x0030 0:1 0:1 0x0021(2) OFF
10:0 --:UP 100G 63:69 0x0f00:0x0300 0:1 0:1 0x0022(2) OFF
11:0 --:UP 100G 63:69 0xf000:0x3000 0:1 0:1 0x0023(2) OFF
12:0 --:UP 100G 63:69 0x000f:0x0003 0:1 0:1 0x0028(3) OFF
13:0 --:UP 100G 63:69 0x00f0:0x0030 0:1 0:1 0x0029(3) OFF
14:0 --:UP 100G 63:69 0x0f00:0x0300 0:1 0:1 0x002a(3) OFF
15:0 --:UP 100G 63:69 0xf000:0x3000 0:1 0:1 0x002b(3) OFF
16:0 --:UP 100G 63:69 0x000f:0x0003 0:1 0:1 0x0040(4) OFF
17:0 --:UP 100G 62:69 0x00f0:0x0030 0:1 0:1 0x0041(4) OFF
18:0 --:UP 100G 63:69 0x0f00:0x0300 0:1 0:1 0x0042(4) OFF
19:0 --:UP 100G 63:69 0xf000:0x3000 0:1 0:1 0x0043(4) OFF
20:0 --:UP 100G 63:69 0x000f:0x0003 0:1 0:1 0x0048(5) OFF
21:0 --:UP 100G 63:69 0x00f0:0x0030 0:1 0:1 0x0049(5) OFF
22:0 --:UP 100G 63:69 0x0f00:0x0300 0:1 0:1 0x004a(5) OFF
23:0 --:UP 100G 63:69 0xf000:0x3000 0:1 0:1 0x004b(5) OFF
24:0 --:UP 100G 63:69 0x000f:0x0003 0:1 0:1 0x0060(6) OFF
25:0 --:UP 100G 63:69 0x00f0:0x0030 0:1 0:1 0x0061(6) OFF
26:0 --:UP 100G 63:69 0x0f00:0x0300 0:1 0:1 0x0062(6) OFF
27:0 --:UP 100G 63:69 0xf000:0x3000 0:1 0:1 0x0063(6) OFF
28:0 --:UP 100G 63:69 0x000f:0x0003 0:1 0:1 0x0068(7) OFF
29:0 --:UP 100G 63:69 0x00f0:0x0030 0:1 0:1 0x0069(7) OFF
30:0 --:UP 100G 63:69 0x0f00:0x0300 0:1 0:1 0x006a(7) OFF
31:0 --:UP 100G 63:69 0xf000:0x3000 0:1 0:1 0x006b(7) OFF
32:0 --:UP 400G 79:79 0x00ff:0x00ff 0:1 0:1 0x0100(8) OFF
33:0 --:UP 400G 79:79 0xff00:0xff00 0:1 0:1 0x0102(8) OFF
34:0 --:UP 400G 79:79 0x00ff:0x00ff 0:1 0:1 0x0108(9) OFF
35:0 --:UP 400G 79:79 0xff00:0xff00 0:1 0:1 0x010a(9) OFF
------------------------------------------------------------------------------------------
L:Line H:Host SD:Signal detect LOCK:Dsp lock !e: disable
regress@rtme-acx7100-32C:pfe> show system info
System Date : Mon Jul 11 07:56:30 PDT 2022
System Uptime : Up for 38-15:21:05
Pfe Uptime : Up for 38-15:19:39
CPU INFO:
========
Model name : Intel(R) Xeon(R) CPU D-1637 @ 2.90GHz
Configured CPU Speed : 1956.403 2730.638 1738.774 2876.145 2279.032 1903.599 2392.586 2759.427 2710.492 2428.014 1909.381 2113.616 MHz
Physical cores : 6
Hyperthreaded cores : 12
L1 Cache size : 0 kB
L2 Cache size : 0 kB
L23Cache size : 0 kB
CPU PAIRS:
=========
Core 0 : 0 6
Core 1 : 1 7
Core 2 : 2 8
Core 3 : 3 9
Core 4 : 4 10
Core 5 : 5 11
SYSTEM MEMORY USAGE (MB):
========================
MemTotal: 65281228 kB
MemFree: 46410328 kB
MemAvailable: 59100436 kB
Buffers: 647040 kB
Cached: 12470188 kB
SwapCached: 0 kB
SwapTotal: 4194300 kB
SwapFree: 4194300 kB
<SNIP>
The ACX7100-48L differs by the absence of gearboxes, the ports being directly connected to the PFE Port Macros (hence the lack of MACsec support on this platform).
Both ACX7100-48L and ACX7100-32C have a single routing engine. That means we don't support any kind of High-Availability (HA) option at the RE level. Also, In-Service System Upgrade (ISSU) is not supported, nor planned.
The only field replaceable parts on these routers are:
the Power Supply Modules (2x AC or 2x DC)
the Fan Trays (6 blocks)
the SATA SDD
The SSD maintenance is well documented in the TechLibrary articles:
Regarding the cooling system and power supply, they are all accessible from the back of the router:

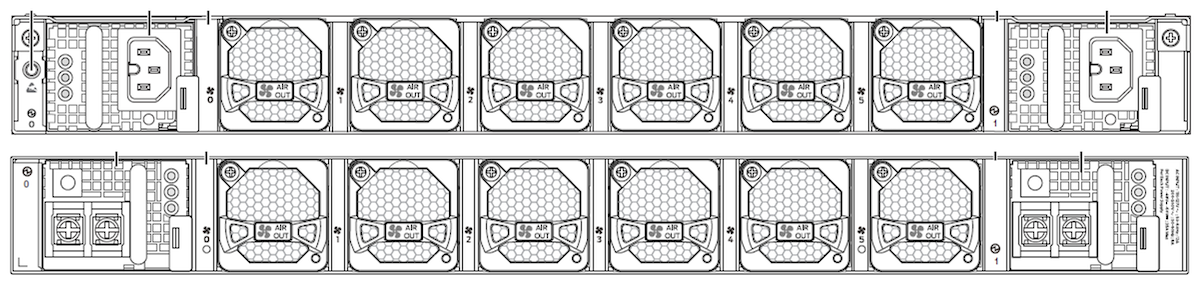

Figure 21: AC and DC Systems Rear View
You notice two PSMs, one on each side of the router. They can be AC or DC but we can't mix the two categories. With a 1+1 PSM configuration, we have power redundancy: if one fails, the system raises an alarm but stays fully operational.
regress@rtme-acx7100-32C> show chassis power detail
Chassis Power Voltage(V) Power(W)
Total Input Power 468
PSM 0
State: Online
Input 202 223
Output 11.97 201.25
Capacity 1600 W (maximum 1600 W)
PSM 1
State: Online
Input 202 245
Output 11.95 221.57
Capacity 1600 W (maximum 1600 W)
System:
Zone 0:
Capacity: 3200 W (maximum 3200 W)
Actual usage: 468 W
Total system capacity: 3200 W (maximum 3200 W)
regress@rtme-acx7100-32C>
ACX7100 relies on six Fan Trays for cooling purposes:

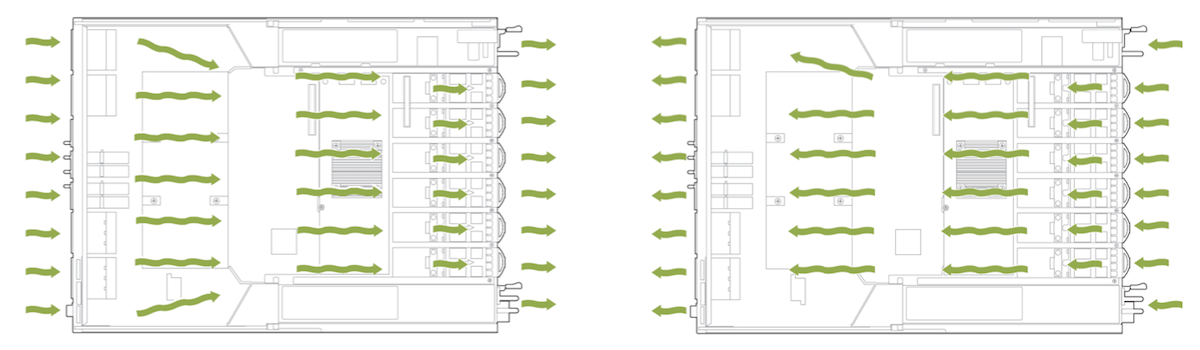

ACX7100-48L is designed for both front-to-back airflow and back-to-front airflow

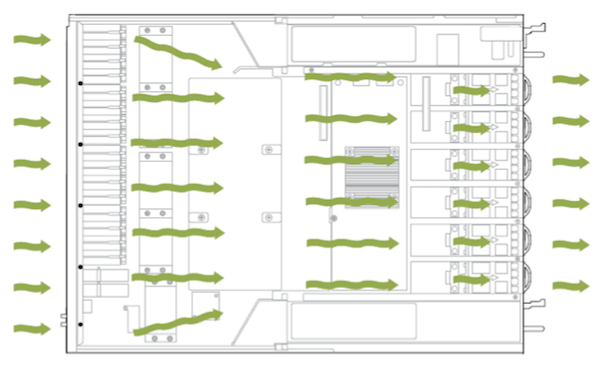

ACX7100-32C is designed only for front-to-back airflow
Each Fan Tray is a pluggable module hosting two 40x40 mm counter-rotating rotors (Fan 1 and Fan 2 below). The system supports single rotor failure (N+1 redundancy).
regress@rtme-acx7100-32C> show chassis fan
Item Status % RPM Measurement
Fan Tray 0 Fan 1 OK 43% 12800 RPM
Fan Tray 0 Fan 2 OK 43% 10800 RPM
Fan Tray 1 Fan 1 OK 43% 13000 RPM
Fan Tray 1 Fan 2 OK 44% 11000 RPM
Fan Tray 2 Fan 1 OK 43% 12800 RPM
Fan Tray 2 Fan 2 OK 43% 10800 RPM
Fan Tray 3 Fan 1 OK 43% 12800 RPM
Fan Tray 3 Fan 2 OK 43% 10800 RPM
Fan Tray 4 Fan 1 OK 43% 13000 RPM
Fan Tray 4 Fan 2 OK 43% 10800 RPM
Fan Tray 5 Fan 1 OK 43% 12800 RPM
Fan Tray 5 Fan 2 OK 44% 11000 RPM
regress@rtme-acx7100-32C>
The ACX7100-48L and ACX7100-32C are "Systems on the Chip" (SoC). That means they are based on a single PFE where all parts involved in the forwarding tasks are directly connected. This Jericho2 (BCM88690) PFE is a deep-buffer ASIC with hybrid packet memory (internal and external). The external buffer is actually present in the package itself: 8GB of HBM2 memory.
Follow-up articles in the near future will describe some internal key aspects of the PFE like the MDB profiles and the resource allocation/monitoring.
The ACX7100-48L and ACX7100-32C routers are 1-RU, 4.8Tbps platforms, ideally positioned for multiple roles including 10G/25/50GE and 100GE to 400GE aggregation. In the next articles, we will continue the description of the ACX7000 portfolio and dig deeper into the specific features of these products.
