People say there are no greenfield service providers (SPs). Some networks grow organically, some by acquisitions and merges. Growth takes time, and technology does not stay idle, speaking not only of interface speeds, but as well of the used protocols. Sooner or later, a more efficient network would require protocols to be updated or changed: solving scaling challenges, providing more flexible underlays and overlays, enabling new businesses.
Many SPs already moved to SR-MPLS or are in the process of transition. Now is the time to use the advantages of this technology, for example one or multiple flavors of traffic engineering (SR-TE). In this TechPost, we will see how to map virtual private networks (VPNs) or plain IPv4/IPv6 prefixes to colored traffic-engineered paths in an MPLS network.
Junos is doing great job in helping network operators to change a technology. To name just one example: coexistence of VPLS and EVPN, allowing for site-by-site migration and saving the investments in VPLS. Check this post for more details.
The same applies to migration between different transport protocols. Junos allows mapping of new (for example EVPN) and old (for example LDP-based) services to traffic-engineered transport paths established by RSVP, SR-TE, BGP-CT or Flex-Algo.
In this article we're reviewing colored TE transport tunnels, carrying different services between same pairs of PE endpoints. Color is required to differentiate transport tunnels between a pair of PE endpoints, each using a single Loopback IP address. It's a great business enabler, allowing different SLAs for various service types.

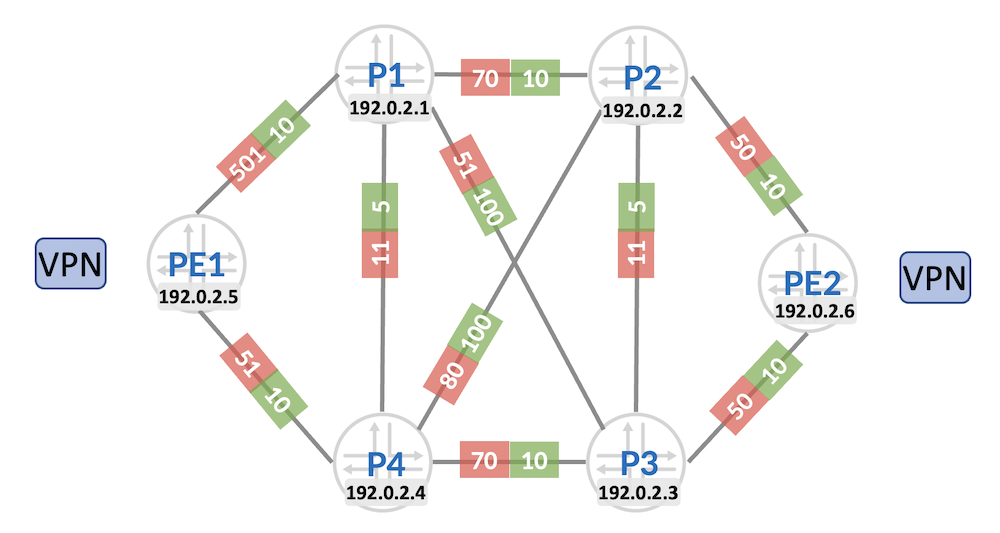

Throughout this TechPost we will use this reference network:
Figure 1: Topology
Please note that this network is running on vMX with Junos 22.4R1. Support for mapping services to colored MPLS LSPs appeared in Junos in 2019, gradually adding new features on all platforms like MX, PTX, ACX, and even more features to come, as the protocols and products evolve!
ISIS is serving as internal protocol (IGP), but OSPF is supported as well. Each link has an IGP metric (green color) and a delay metric (red). IGP metric can be thought of being proportional to the link bandwidth, and the delay metric represents a static or a dynamic link latency value in milliseconds. There is a single Flex-Algo 128 which uses delay metrics for shortest path calculation. Other constraints like link affinities might be used, but for brevity are not included here.
All services are running between PE1 and PE2. Some will be BGP-signaled, and some use LDP. PE devices either have a direct iBGP session or exchange prefixes via a route reflector. Basic PE configuration is independent of the carried services:
aelita@pe2# show groups SR
policy-options {
policy-statement PS-ADD-FLEX-ALGO {
term TR-FA128 {
from {
interface lo0.0;
route-filter 192.0.2.6/32 exact;
}
then {
prefix-segment {
algorithm 128 index 106 node-segment;
index 6;
node-segment;
}
accept;
}
}
}
}
routing-options {
flex-algorithm 128 {
definition {
metric-type delay-metric;
}
color 128;
use-transport-class;
}
route-distinguisher-id 192.0.2.6;
resolution {
preserve-nexthop-hierarchy;
}
transport-class {
auto-create;
name tc-128 {
color 128;
}
}
}
protocols {
isis {
source-packet-routing {
node-segment ipv4-index 6;
flex-algorithm 128;
}
export PS-ADD-FLEX-ALGO;
}
mpls {
label-range {
srgb-label-range 100000 135999;
}
}
}
A few notes on the above configuration:
SRGB allocation is configured at "protocols mpls" level, and effectively creates a shared common label block for protocols like ISIS and BGP
Flex-Algo 128 is configured for both participation (required on every participating node) and definition (required on at least one node per ISIS level)
A policy is used to advertise both regular SID and Flex-Algo 128 SID in ISIS
"resolution preserve-nexthop-hierarchy" must be enabled for correct next-hop resolution in services like VPLS
Transport-Class is used for the colored paths
Transport classes have been introduced in Junos 21.1R1 and represent sets of transport tunnels with common TE characteristics. They simplify mapping of service routes to transport routes, with desired SLA and fallback characteristics. Matching happens by comparing color community attached to the service prefix with the color of the transport class, where transport tunnel reside. Transport tunnels can be initiated by RSVP-TE, SR-TE, Flex-Algo or BGP-CT.
Each transport class can have own fallback configuration, which allows using next-hops from a different colored transport class or uncolored tunnels.
Mapping to transport classes is facilitated via new route target called "transport-target", acting as a mapping community to resolve routes via respective transport classes.
The above output shows two types of resolution schemes, for transport and service. Transport can be any of RSVP-TE, SR-TE, Flex-Algo and other types of underlay transport tunnels, and uses transport-target as a mapping community. Service refers to L3VPN, EVPN, L2VPN and other types of payload and uses color community for mapping.
aelita@pe2# run show route table junos-rti-tc-128.inet.3
192.0.2.1/32 *[L-ISIS/14] 2d 22:11:52, metric 101
> to 10.0.36.1 via ge-0/0/0.0, Push 100101
192.0.2.2/32 *[L-ISIS/14] 2d 22:12:03, metric 50
> to 10.0.26.1 via ge-0/0/1.0
192.0.2.3/32 *[L-ISIS/14] 2d 22:11:40, metric 50
> to 10.0.36.1 via ge-0/0/0.0
192.0.2.4/32 *[L-ISIS/14] 2d 22:11:26, metric 112
> to 10.0.36.1 via ge-0/0/0.0, Push 100104
192.0.2.5/32 *[RSVP/7/1] 00:03:58, metric 30
> to 10.0.36.1 via ge-0/0/0.0, label-switched-path LSP-PE1
[SPRING-TE/8] 00:09:03, metric 1, metric2 30
> to 10.0.26.1 via ge-0/0/1.0, Push 100005
to 10.0.36.1 via ge-0/0/0.0, Push 100005
[L-ISIS/14] 2d 22:12:23, metric 163
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
aelita@pe2# run show isis route flex-algorithm-id 128
IS-IS routing table Current version: L1: 0 L2: 390
IPv4/IPv6 Routes
----------------
Prefix L Version Metric Type Interface NH Via Backup Score
192.0.2.1/32 2 348 101 int ge-0/0/0.0 IPV4 p3
192.0.2.2/32 2 348 50 int ge-0/0/1.0 IPV4 p2
192.0.2.3/32 2 348 50 int ge-0/0/0.0 IPV4 p3
192.0.2.4/32 2 348 112 int ge-0/0/0.0 IPV4 p3
192.0.2.5/32 2 348 163 int ge-0/0/0.0 IPV4 p3
192.0.2.6/32 2 348 0 int
[..]
The CLI outputs show which transport classes exist, their fallback configuration, and the contents of the respective routing tables. Table junos-rti-tc-128.inet.3 shows routes from different protocols like RSVP-TE, SR-TE and ISIS Flex-Algo.
Color assignment for Flex-Algo is by default taking the value of Flex-Algo itself, for example 128. For RSVP-TE or SR-TE, color can be configured like this:
aelita@pe2# show protocols mpls
label-switched-path LSP-PE1 {
to 192.0.2.5;
transport-class tc-128;
}
aelita@pe2# show groups SR protocols source-packet-routing
source-routing-path SP-PE1 {
to 192.0.2.5;
color 128;
primary {
SL-PE1 {
compute;
}
}
}
Above LSPs do not have strict path or other constraints, and Junos will calculate the path - provided that the TED is populated by IGP. More on TED can be found in this techpost.
Mapping LDP-based VPNs to colored transport tunnels¶
L2circuit is a very widespread technology supporting layer-2 point-to-point VPNs. With a simple configuration knob, l2circuits can be mapped to underlying colored transport tunnels:
aelita@pe2# run show route table junos-rti-tc-128.inet.3 192.0.2.5/32
192.0.2.5/32 *[RSVP/7/1] 00:39:22, metric 30
> to 10.0.36.1 via ge-0/0/0.0, label-switched-path LSP-PE1
[SPRING-TE/8] 00:44:27, metric 1, metric2 30
> to 10.0.26.1 via ge-0/0/1.0, Push 100005
to 10.0.36.1 via ge-0/0/0.0, Push 100005
[L-ISIS/14] 2d 22:47:47, metric 163
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
aelita@pe2# run show route table l2circuit.0 expanded-nh
192.0.2.5:CtrlWord:5:19202501:Local/96
*[L2CKT/7] 00:11:47, metric2 30
> to 10.0.36.1 via ge-0/0/0.0, label-switched-path LSP-PE1
We can remove the RSVP-TE LSP to verify that l2circuit will be re-mapped to the next available transport tunnel:
aelita@pe2# deactivate groups SR protocols source-packet-routing source-routing-path SP-PE1
[edit]
aelita@pe2# commit
commit complete
aelita@pe2# run show route table junos-rti-tc-128.inet.3 192.0.2.5/32
192.0.2.5/32 *[L-ISIS/14] 3d 00:14:03, metric 163
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
[edit]
aelita@pe2# run show route table l2circuit.0 expanded-nh
192.0.2.5:CtrlWord:5:19202501:Local/96
*[L2CKT/7] 00:00:34, metric2 163
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
The outgoing transport label is clearly confirming the use of Flex-Algo 128 label. The metric of 163 is a sum of delay metrics following this lowest latency path: PE2, P2, P3, P1, P4 -PE1
Similar to L2circuits, VPLS with LDP signaling uses LDP to allocate the label, but does not require LDP-enabled core and can be mapped to colored transport tunnels.
I will skip the full VPLS configuration for brevity, as it's already well documented in the guides for Junos.
Before applying the mapping onto colored transport tunnels:
aelita@pe2# set groups VPLS-LDP routing-instances RI-VPLS protocols vpls community CM-128
aelita@pe2# set groups VPLS-LDP policy-options community CM-128 members color:0:128
[edit]
aelita@pe2# commit
aelita@pe2# run show route table l2circuit.0
192.0.2.5:NoCtrlWord:5:192003:Local/96
*[VPLS/7] 00:00:04, metric2 163
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
Next-hop now expectedly points to the colored next-hop.
Mapping BGP-based VPNs to colored transport tunnels¶
L2VPN with BGP signaling would by default use any valid next-hop from the inet.3 table, where uncolored tunnels are located. To instruct a PE to use a colored MPLS path to the remote end, we will add a community matching traffic-class configuration. Setting the color community will be part of a BGP policy. Such policy can be applied flexibly: it can be configured on the egress PE by using VRF export policy, or BGP export policy per group or per neighbor. Alternatively, color community can be applied on the ingress PE by using BGP import policy per group or per neighbor.
aelita@pe1# run show route table RI-L2VPN.l2vpn.0 expanded-nh
192.0.2.6:65533:2:1/96
*[BGP/170] 00:15:12, localpref 100, from 192.0.2.6
AS path: I, validation-state: unverified
to 10.0.15.1 via ge-0/0/0.0, Push 100006
> to 10.0.45.1 via ge-0/0/1.0, Push 100006
aelita@pe1# run show route 192.0.2.6 table inet.3
192.0.2.6/32 *[L-ISIS/14] 3d 00:32:37, metric 30
> to 10.0.15.1 via ge-0/0/0.0, Push 100006
to 10.0.45.1 via ge-0/0/1.0, Push 100006
Metric 30 is the sum of regular IGP metrics via either southern or northern paths in our topology.
VPLS with BGP signaling uses the same address family as L2VPN above. BGP policies to add color community are same too. VPLS configuration itself is well known, so can be skipped.
Verification of the route programming in Junos, and traffic class being applied:
aelita@pe2# run show route table RI-VPLS.l2vpn.0 expanded-nh
RI-VPLS.l2vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
192.0.2.5:9:1:1/96
*[BGP/170] 00:18:45, localpref 100, from 192.0.2.5
AS path: I, validation-state: unverified
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
aelita@pe2# run show route forwarding-table family vpls detail
Routing table: RI-VPLS.vpls
VPLS:
Enabled protocols: ACKed by all peers,
Destination Type RtRef Next hop Type Index NhRef Netif
default perm 0 dscd 609 1
vt-0/0/0.1048576 intf 0 indr 1048574 4
10.0.36.1 Push 25, Push 100105(top) 616 2 ge-0/0/0.0
The label used corresponds to the Flex-Algo node SID of the egress PE1:
aelita@pe2# run show route 192.0.2.5/32 table junos-rti-tc-128
192.0.2.5/32 *[L-ISIS/14] 3d 01:47:53, metric 163
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
Junos 23.1R1 makes possible EVPN mapping to colored SR-TE or Flex-Algo transport tunnels using "transport classes" . With older Junos releases, inet[6]color tables with resolution-maps can be used for service mapping.
Below is configuration and verification example for EVPN-ELAN and EVPN-VPWS.
aelita@pe2# show
interfaces {
ge-0/0/2 {
flexible-vlan-tagging;
encapsulation flexible-ethernet-services;
unit 0 {
encapsulation vlan-ccc;
vlan-id 10;
esi {
00:00:00:00:01:00:00:00:00:01;
all-active;
}
}
unit 11 {
encapsulation vlan-bridge;
vlan-id 11;
esi {
00:00:00:00:02:00:00:00:00:01;
all-active;
}
}
}
}
policy-options {
policy-statement PL-ADD-COLOR {
term A {
then {
community add CM-128;
}
}
}
community CM-128 members color:0:128;
}
routing-instances {
RI-EVPN-VPWS {
instance-type evpn-vpws;
protocols {
evpn {
interface ge-0/0/2.0 {
vpws-service-id {
local 2;
remote 1;
}
}
}
}
interface ge-0/0/2.0;
vrf-target target:100:1;
}
RI-EVPN-ELAN {
instance-type evpn;
protocols {
evpn;
}
vlan-id 11;
interface ge-0/0/2.11;
vrf-target target:100:2;
}
}
protocols {
bgp {
group GR-iBGP {
local-address 192.0.2.6;
import PL-ADD-COLOR;
family evpn {
signaling;
}
peer-as 100;
local-as 100;
neighbor 192.0.2.5;
}
}
}
[edit groups EVPN]
VLANs 10 and 11 carry different EVPN services: VPWS and ELAN. Here again we assign extended color community color:0:128 on the ingress BGP group level, but this can be changed to vrf-export (or BGP group/neighbor export) on egress PE side.
aelita@pe2# run show evpn vpws-instance RI-EVPN-VPWS
Instance: RI-EVPN-VPWS, Instance type: EVPN VPWS, Encapsulation type: MPLS
Route Distinguisher: 192.0.2.6:65534
Number of local interfaces: 1 (1 up)
Interface name ESI Mode Role Status Control-Word Flow-Label-Tx Flow-Label-Rx
ge-0/0/2.0 00:00:00:00:01:00:00:00:00:01 all-active Primary Up No No No
Local SID: 2 Advertised Label: 34
Remote SID: 1
PE addr ESI Label End.Dx2 SID Mode Role TS Status
192.0.2.5 00:00:00:00:01:00:00:00:00:02 37 all-active Primary 2022-12-28 01:42:58.619 Resolved
Number of protect interfaces: 0
Fast Convergence Information
ESI: 00:00:00:00:01:00:00:00:00:02 Number of PE nodes: 1
PE: 192.0.2.5
Advertised SID: 1
Check that the transport tunnel picks up the right label for Flex-Algo 128:
aelita@pe2# run show route table RI-EVPN-VPWS.evpn.0 expanded-nh
1:192.0.2.5:0::010000000002::FFFF:FFFF/192 AD/ESI
*[BGP/170] 00:05:36, localpref 100, from 192.0.2.5
AS path: I, validation-state: unverified
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
1:192.0.2.5:65533::010000000002::1/192 AD/EVI
*[BGP/170] 00:05:36, localpref 100, from 192.0.2.5
AS path: I, validation-state: unverified
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
Plain IPv4 or IPv6 is not much different from L3VPN. All what's needed is to add a color community to chosen prefix(es): either on the egress PE as part of the BGP export policy, or on the ingress PE in the BGP import policy.
aelita@pe2# run show route receive-protocol bgp 192.0.2.5 detail | match "\*|comm|label"
* 1.1.1.0/24 (1 entry, 1 announced)
Communities: color:0:128
* 2001:100::1:0/127 (1 entry, 1 announced)
Communities: color:0:128
aelita@pe2# run show route protocol bgp table inet.0
1.1.1.0/24 *[BGP/170] 00:00:48, localpref 100, from 192.0.2.5
AS path: I, validation-state: unverified
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
aelita@pe2# run show route protocol bgp table inet6.0
2001:100::1:0/127 *[BGP/170] 00:01:05, localpref 100, from 192.0.2.5
AS path: I, validation-state: unverified
> to 10.0.36.1 via ge-0/0/0.0, Push 100105
Junos allows a very granular mapping of complete services (or service prefixes) to colored MPLS tunnels. SR-TE, RSVP-TE, BGP-CT or Flex-Algo are all supported contributors to the transport tunnels. In addition to the above-mentioned services, Junos allows transport class mapping for IPv6 and flowspec address familes.
