Base class for all Aft nodes. More...

#include <AftNode.h>

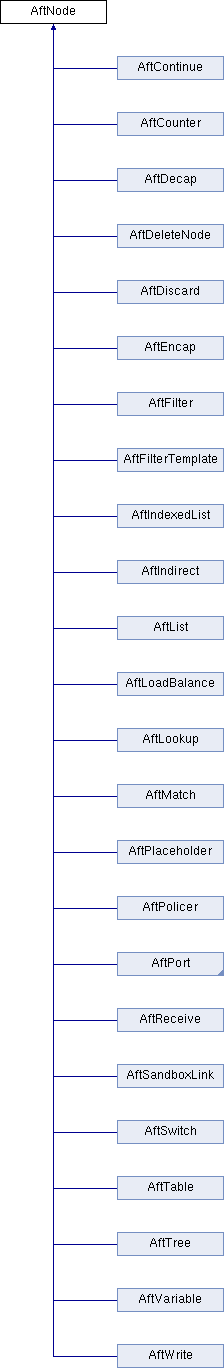

Inheritance diagram for AftNode:

Public Member Functions
	AftNode (const AftNode &node)
	Copy constructor for a basic node. More...

	AftNode (const AftNodeToken newToken=AFT_NODE_TOKEN_NONE, const AftNodeToken newNext=AFT_NODE_TOKEN_NONE, const std::string newName="")
	Construct an entry for a basic node. More...

	operator const AftNodeToken () const

const AftNodeToken	nodeToken () const

const std::string	nodeName () const

const AftTypeIndex	nodeTypeIndex () const

void	setNodeNext (AftNodeToken newNext)
	Set the (optional) next node. More...

const AftNodeToken	nodeNext () const

void	setNodeParameters (const AftParameters::Ptr &newParams)
	Set the optional parameters of the node. More...

const AftParameters::Ptr	nodeParameters () const

template<class T >
std::shared_ptr< T >	nodeParameter (const std::string &name)
	Convenience parameter access template. Use this to access node parameters. More...

void	setNodeParameter (const std::string &name, const AftDataPtr &data)
	Convenience parameter setter. Use this to set node parameters. More...

virtual const std::string	nodeType () const

virtual const bool	nodeIsContainer () const
	@ returns true if node can take entries

virtual const bool	nodeIsDelete () const
	@ returns true if node is a delete

virtual const bool	nodeIsValid (const AftValidatorPtr &validator, std::ostream &os)
	@ returns true if node is valid

virtual void	nextNodes (AftTokenVector &nextTokens)

virtual std::ostream &	description (std::ostream &os) const
	Append a description of the node to an output stream. More...

Static Public Member Functions
template<class T >
static std::shared_ptr< T >	downcast (const AftNodePtr &node)
	Convenience downcast template. Use this instead of manual casting if required. More...

Protected Member Functions
void	setNodeName (std::string newName)
	Set the name of the node. More...

void	setNodeToken (AftNodeToken newToken)
	Set the token value of the node. More...

void	setNodeTypeIndex (AftTypeIndex newTypeIndex)
	Set the sandbox node type index. More...

Protected Attributes
friend	AftInsert
	AftInsert accesses the setNodeName and setNodeToken methods.

friend	AftSandbox
	AftSandbox accesses the setNodeName and setNodeToken methods.

friend	AfiNodeRpc
	AfiNodeRpc accesses the setNodeName and setNodeToken methods.

AftNodeToken	_nodeToken
	Unique token value for node.

AftNodeToken	_nodeNext
	Optional value of next node.

std::string	_nodeName
	Optional name of node.

AftParameters::Ptr	_nodeParams
	Optional node parameters.

AftTypeIndex	_nodeTypeIndex
	Scalar index type for node.

Friends
std::ostream &	operator<< (std::ostream &os, const AftNode &node)
	Define << class operator to append description to an output stream. More...

Detailed Description

Base class for all Aft nodes.

This is the base class for all Aft nodes and forms the basic footprint of fundamental class methods that all nodes must support. We never create AftNode objects directly. The class is instantiated by inheriting from it in specific node classes and constructed via the derived classes own constructor.

Constructor & Destructor Documentation

AftNode::AftNode ( const AftNode & node )

inline

Copy constructor for a basic node.

Parameters

[in] node Node to copy

AftNode::AftNode	(	const AftNodeToken	newToken = `AFT_NODE_TOKEN_NONE`,
		const AftNodeToken	newNext = `AFT_NODE_TOKEN_NONE`,
		const std::string	newName = `""`
	)

inline

Construct an entry for a basic node.

Parameters

[in]	newToken	Unique token for node
[in]	newNext	Optional Next token for node
[in]	newName	Optional searchable name for node

Member Function Documentation

virtual std::ostream& AftNode::description ( std::ostream & os ) const

inlinevirtual

Append a description of the node to an output stream.

Parameters

[in] os Reference to output stream to append description to

Returns: Reference to output stream with text description of node appended

Reimplemented in AftPlaceholder, AftSandboxLink, AftVariable, AftWrite, AftEncap, AftDecap, AftIndirect, AftLookup, AftTable, AftTree, AftContinue, AftReceive, AftDiscard, AftPolicer, AftLoadBalance, AftIndexedList, AftList, and AftPort.

template<class T >

static std::shared_ptr<T> AftNode::downcast ( const AftNodePtr & node )

inlinestatic

Convenience downcast template. Use this instead of manual casting if required.

Parameters

[in] node Node to downcast

virtual void AftNode::nextNodes ( AftTokenVector & nextTokens )

inlinevirtual

Returns: Appends valid next tokens to token vector

Reimplemented in AftEncap, AftTable, AftTree, AftSwitch, AftList, and AftFilter.

const std::string AftNode::nodeName ( ) const

inline

Returns: Searchable name for node

const AftNodeToken AftNode::nodeNext ( ) const

inline

Returns: Unique token for node

template<class T >

std::shared_ptr<T> AftNode::nodeParameter ( const std::string & name )

inline

Convenience parameter access template. Use this to access node parameters.

Parameters

[in] name Parameter name to look for

Returns: Pointer to AftData if parameter is found

const AftParameters::Ptr AftNode::nodeParameters ( ) const

inline

Returns: Optional parameters for node

const AftNodeToken AftNode::nodeToken ( ) const

inline

Returns: Unique token for node

virtual const std::string AftNode::nodeType ( ) const

inlinevirtual

Returns: Printable class type of node

Reimplemented in AftPlaceholder, AftSandboxLink, AftVariable, AftWrite, AftEncap, AftDecap, AftIndirect, AftLookup, AftTable, AftTree, AftSwitch, AftMatch, AftContinue, AftReceive, AftDiscard, AftPolicer, AftCounter, AftLoadBalance, AftIndexedList, AftList, AftOutputPort, AftInputPort, AftPort, AftDeleteNode, AftFilter, and AftFilterTemplate.

const AftTypeIndex AftNode::nodeTypeIndex ( ) const

inline

Returns: Type index for node

AftNode::operator const AftNodeToken ( ) const

inline

Returns: Unique token for node

void AftNode::setNodeName ( std::string newName )

inlineprotected

Set the name of the node.

Parameters

[in] newName Name of the node

void AftNode::setNodeNext ( AftNodeToken newNext )

inline

Set the (optional) next node.

Parameters

[in] newNextNode Token for the next node

void AftNode::setNodeParameter	(	const std::string &	name,
		const AftDataPtr &	data
	)

inline

Convenience parameter setter. Use this to set node parameters.

Parameters

[in]	name	Parameter name to set
[in]	data	Reference to data to associate with name

void AftNode::setNodeParameters ( const AftParameters::Ptr & newParams )

inline

Set the optional parameters of the node.

Parameters

[in] newParams Pointer to parameters for node

void AftNode::setNodeToken ( AftNodeToken newToken )

inlineprotected

Set the token value of the node.

Parameters

[in] newToken Value of the token

void AftNode::setNodeTypeIndex ( AftTypeIndex newTypeIndex )

inlineprotected

Set the sandbox node type index.

Parameters

[in] newTypeIndex Node type index

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const AftNode &	node
	)

friend

Define << class operator to append description to an output stream.

Parameters

[in]	os	Reference to output stream to append to
[in]	node	Reference to node to append description of to stream

The documentation for this class was generated from the following file:

AftNode.h
